Protier

Galvanised Tested Alloy Bow Lifting Shackle Screw Pin

Safe Working Load (SWL)
£1.20 GBP
£1.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Galvanised Tested Alloy Bow Lifting Shackle Screw Pin

Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems.

US Fed Spec Shackles are a cost effective alternative to the more expensive Greep Pin Shackle.

  • US Fed Specification
  • Hot Dippec Galvanised
  • Safety Factor 6:1

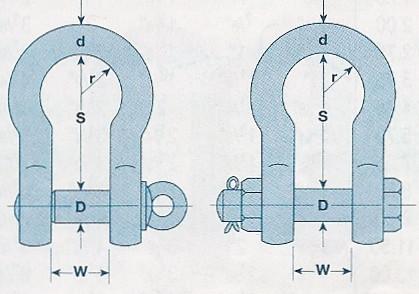

SWL Tonne d inches D inches S inches W inches 2 x r inches Weight kgs/each
0.33 3/16” 1/4” 7/8” 3/8” 9/16” 0.02
0.50 1/4” 5/16” 11/8” 15/32” 3/4” 0.06
0.75 5/16” 3/8” 11/4” 17/32” 13/16” 0.09
1.00 3/8” 7/16” 17/16” 21/32” 15/16” 0.15
1.50 7/16” 1/2” 111/16” 23/32” 11/16” 0.24
2.00 1/2” 5/8” 17/8” 13/16” 13/16” 0.39
3.25 5/8” 3/4” 213/32” 11/16” 11/2” 0.73
4.75 3/4” 7/8” 227/32” 11/4” 13/4” 1.30
6.50 7/8” 1” 35/16” 17/16” 2” 1.82
8.50 1” 11/8” 33/4” 111/16” 25/16” 2.59
9.50 11/8” 11/4” 41/4” 113/16” 25/8” 3.60
12.00 11/4” 13/8” 411/16” 21/32” 27/8” 5.12
13.50 13/8” 11/2” 51/4” 21/4” 31/4” 6.96
17.00 11/2” 15/8” 53/4” 23/8” 33/8” 8.93
25.00 13/4” 2” 7” 27/8” 41/2” 14.24
35.00 2” 21/4” 73/4” 31/4” 51/4” 21.10
55.00 21/2” 23/4” 101/2” 41/8” 63/4” 42.73
85.00 3” 31/4” 13” 5” 73/8” 65.91

Shipping

Orders placed before midday Monday - Friday are normally dispatched in 2-4 working days. This does not include bank holidays.
